HDCloneHDClone 3.8
Copy - Backup - Rescue

NEW: HotCopy & LiveImage



HDClone Boxshot » Free Edition
     cloning ATA/SATA/USB media with up to new: 1.0 GB/min

» Basic Edition
     cloning ATA/SATA/USB media with up to new: 2.0 GB/min

» Standard Edition
     cloning ATA/SATA/USB media with up to new: 2.4 GB/min

» Professional Edition
     cloning (S)ATA/USB/SCSI/Firewire media with up to 6 GB/min

» Enterprise Edition
     mass-cloning (S)ATA/USB/SCSI/Firewire with up to 60 GB/min



» Version Overview
» Info & Screenshot
» Hardware Requirements


HDClone, the universal cloning tool

» NEW: HotCopy & LiveImage while running Windows
» NEW: SmartCopy & AutoExpand now supporting ext2/ext3 file systems
» NEW: supporting hard disks > 2 Terabytes (= 2000 GB)
» Portuguese (Brazil) and Italian language version (English manuals)
» for data rescue, backup, migration, mass installations etc.
» creates logical and physical 1:1 copies (= sector copies)
» builds logical and physical image files
» for use with hard disks and many other storage media
» self-booting and running on Windows XP/Vista/Server

[ Functionality ]
HDClone creates physical or logical copies (clones) and file images of hard disks and other mass storage media. HDClone is a perfect tool for backups and copies of entire software or operating system installations. A special 'SafeRescue' mode makes HDClone an invaluable tool for rescuing defective hard disks and other media. HDClone works independent of partitioning scheme, file system, and operating system. It also works with proprietary formats which otherwise would be unaccessible.

[ File images ]
Instead of a direct copy from medium to medium, you can also store an exact image of medium in an image file. These images files can be stored, archived, or transmitted via network and the Internet. They can be restored at any time or place to a medium which then behaves just like a direct copy had been made.

[ NEW: HotCopy & LiveImage ]
HDClone now can create copies and file images of drives and partitions during Windows operation - even for the system volume.

[ Faster with SmartCopy mode - NEW: now supporting ext2 & ext3 ]
HDClone creates logical sector copies (SmartCopy) of FAT, NTFS, and ext2/ext3 file systems in only a fraction of the time usually needed - yielding an equivalent result. SmartCopy can clone an entire Windows XP base installation in less than 20 seconds for example.

[ AutoExpand - upsizing 'on the fly' - NEW: now supporting ext2 & ext3 ]
Let HDClone upsize your FAT, NTFS, and ext2/ext3 partitions automatically on the fly during copying.

[ HDClone on Windows (XP/Vista/Server) ]
 create copies and images - even of the system volume - while Windows is running
 access to special media & controllers (SCSI, SAS, RAID, Dynamic Volumes ...)
 using familiar Windows drive letters
Each HDClone software package now contains a Windows program (HDClone/W) in addition to the self-booting program (HDClone/S). Since both are operated identically, you do not have to change over when switching between HDClone/s and HDClone/W.

Note:Please use the Free Edition to find out if a certain PC system and its mass storage media are supported. The Free Edition shows all supported and recognized drives, but some of them may only be usable with one of the higher editions.

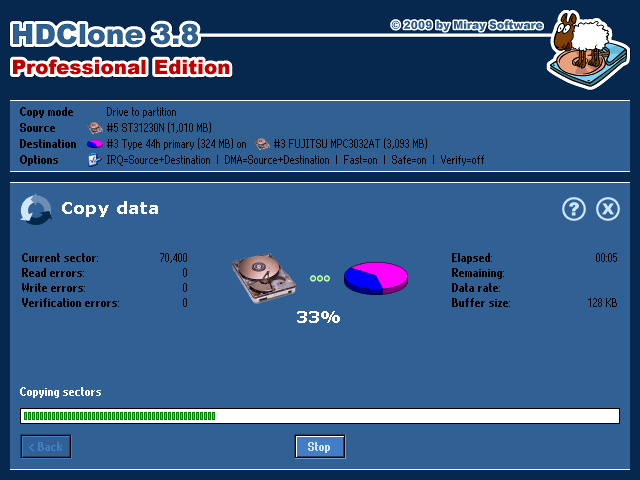

Screenshot of HDCloneInformation Material

» HDClone data sheet (.pdf)

» HDClone screenshot (.png)


Hardware Requirements

HDClone/S (self-booting program)
• PC 586 or higher, 64 MB RAM, VGA
• bootable floppy drive or CD/DVD drive

HDClone/W (Windows program)
• according to Windows version used


Supported controllers» back to top

Controller typeHDClone/SHDClone/W
PCI IDE/ATA hard disk controlleryesyes
Busmaster IDE controlleryesyes
USB 1.1 (UHCI, OHCI)yesyes
USB 2.0 (EHCI)yesyes
Adaptec SCSI host adapter *yesyes
other SCSI host adapter (LSI etc.)noyes
SAS host adapternoyes
RAID controllernoyes
AHCI (SATA II) controlleryesyes
Firewire / IEEE1394 (OHCI)yesyes
* A complete list of Adaptec SCSI host adapters supported by HDClone/S is to be found here.


Supported media» back to top

Media typeHDClone/SHDClone/W
USB key drivesyesyes
Dynamic Volumesnoyes
Hard disks
IDE, ATA, SATA, eSATAyesyes
USB, Firewire, SCSIyesyes
SSDyesyes
SASnoyes
Flash storage (with card reader)
CompactFlashyesyes
SD, MMCyesyes
xD and otheryesyes
File systems
physical sector copiesanyany
logical sector copies (SmartCopy)FAT, NTFS, ext2/3FAT, NTFS, ext2/3
File-images*FAT, NTFSany* (FAT, NTFS,…)
* Image files need to be stored to certain file systems (on Windows, any supported file system may be used).




Free Edition» back to top

NEW: Transfers up to 18 MB/sec (= 1 GB/min)
NEW: HotCopy & LiveImage (creating clones and images while Windows is running)
NEW: ext2/ext3 AutoExpand (automatic upsizing during copying)

The Free Edition of HDClone clones an entire hard disk to another, larger medium. Use it for migrating an existing installation to a new hard disk or for rescuing data. The Free Edition is real freeware without obligation to buy and is intended for the short-term usage at no cost. In case of more frequent usage, we recommend using one of the higher editions since they offer higher performance, support for a wider range of hardware, and additional options which are optimized for regular or professional use.

» Download | Version overview



Basic Edition» back to top

NEW: Transfers up to 36 MB/sec (= 2 GB/min)
NEW: HotCopy & LiveImage (creating clones and images while Windows is running)
NEW: ext2/ext3 AutoExpand (automatic upsizing during copying)

The Basic Edition of HDClone is conceived for regular utilization, especially for system migration, backups, dara rescue, and system restore. Besides higher performance, it offers arbitrary copying directions and contains extended backup (Disk-to-Partition-Backup), system restore (partition copy), and data rescue (SafeRescue mode) options.

» Buy now | Version overview



Standard Edition» back to top

NEW: Transfers up to 40 MB/sec (= 2.4 GB/min)
NEW: HotCopy & LiveImage (creating clones and images while Windows is running)
NEW: ext2/ext3 AutoExpand (automatic upsizing during copying)
NEW: ext2/ext3 SmartCopy & SmartImage (extremely fast copies and images)

The Standard Edition of HDClone is conceived for frequent and semi-professional use. Besides support for fast logical sector copies (SmartCopy) it offers a verify mode for data reconciliation with the target medium and high copying performance. The fast SmartCopy mode also strongly improves the performance of AutoExpand.

» Buy now | Version overview



Professional Edition» back to top

NEW: HotCopy & LiveImage (creating clones and images while Windows is running)
NEW: ext2/ext3 AutoExpand (automatic upsizing during copying)
NEW: ext2/ext3 SmartCopy & SmartImage (extremely fast copies and images)
NEW: Supporting hard disks> 2 Terabytes (2 TB = 2000 GB)
NEW: Now running on Windows Server 2003 & 2008

The Professional Edition of HDClone is conceived for daily and professional use. Its FastCopy mode and freely selectable sector areas give technicians and professionals maximum speed and flexibility. HDClone Professional Edition supports SCSI hard disks and Firewire (IEEE1394) mass storage (SBP2) as well as SAS and RAID with HDClone/W.

* A complete list of Adaptec SCSI host adapters supported by HDClone/S is to be found here.

» Buy now | Version overview



Enterprise Edition» back to top

NEW: HotCopy & LiveImage (creating clones and images while Windows is running)
NEW: ext2/ext3 AutoExpand (automatic upsizing during copying)
NEW: ext2/ext3 SmartCopy & SmartImage (extremely fast copies and images)
NEW: Supporting hard disks> 2 Terabytes (2 TB = 2000 GB)
NEW: Now running on Windows Server 2003 & 2008

The Enterprise Edition of HDClone is designed for mass reproduction. It allows for mass cloning to all supported drive types. Drive types can be mixed arbitrarily within one copy run. The Enterprise Edition also offers all features of the Professional Edition.

Copying speed: According to the variant used (4x, 8x, 16x), Enterprise Edition copies to up to 4, 8 or 16 drives at a time. Thereby it achieves up to 60 GB/min and more.

* A complete list of Adaptec SCSI host adapters supported by HDClone/S is to be found here.

» Buy now: Enterprise 4x | Enterprise 8x | Enterprise 16x
» Version overview



Version overview» back to top

FeaturesFreeBasicStandardProfessionalEnterprise
Entire driveyesyesyesyesyes
Single partitionsnoyesyesyesyes
Physical imagesyesyesyesyesyes
new: LiveImagenoyesyesyesyes
Smart imagesnonoyesyesyes
RAW imagesnononoyesyes
IDE/ATA/SATA hard disks*yesyesyesyesyes
SATA / SATA II / eSATA (AHCI)yesyesyesyesyes
USB 1.1 & 2.0 Mass Storage (UHCI, OHCI, EHCI)yesyesyesyesyes
SCSI hard disks*nononoyesyes
Firewire / IEEE1394 (OHCI)nononoyesyes
Dynamic Drives**nononoyesyes
self-bootingyesyesyesyesyes
Windows XP/Vistayesyesyesyesyes
new: Windows Server 2003/2008nononoyesyes
new: HotCopyyesyesyesyesyes
Media parameter adjustmentyesyesyesyesyes
Automatic upsizingyesyesyesyesyes
SafeRescue modenoyesyesyesyes
Verify modenonoyesyesyes
SmartCopy (FAT16, FAT32, NTFS)nonoyesyesyes
new: SmartCopy (ext2/ext3)nonoyesyesyes
FastCopy modenononoyesyes
Sector area copynononoyesyes
new: hard disks > 2 Terabytesnononoyesyes
MultiCopy (4x, 8x, 16x)nonononoyes
max. copy rate (MB/sec, GB/min)18 / 1.036 / 2.040 / 2.4100 / 6.0 +1000 / 60 +
copying time***74 min37 min17 min8 min< 8 min / HD
Private useyesyesyesyesyes
Companies/Institutionsnonoyesyesyes
Technician licensenononoyesyes

EU (incl. 19% VAT)

US / worldwide
free
19.90 €
16.72 €

39.90 €
33.53 €

99.00 €
83.19 €
Starting at
299.00 €
251.26 €
DownloadOrder nowOrder nowOrder nowOrder now

* Applicability may depend on the controller used.
** Available on HDClone/W only.
*** Based on example values: 1 partition (80 GB capacity, 40 GB used), 80 MB/sec transfer rate.
